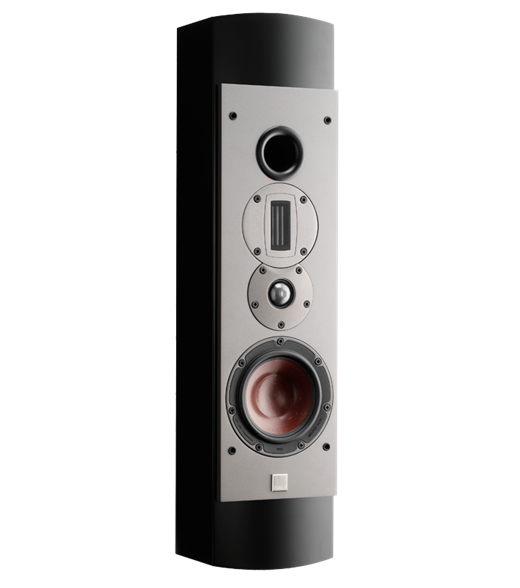

MENTOR LCR

MENTOR LCR (Left/Center/Right) is the ideal all-round speaker for stereo use or as front, rear and center speaker in an ultra-compact, high performance surround speaker system.

Fitted with a driver array similar to the MENTOR 1, the LCR ribbon tweeter can be turned 90 degrees, allowing you to mount the speaker vertically or horizontally.

Available in black or white lacquer finish, the MENTOR LCR will enhance the beauty of any flat screen television.

MENTOR LCR is factory-fitted with an integral wall bracket. All that is required for secure wall-mounting is two screws in the wall, demonstrating once again that with DALI you can have convenience and ease of use without sacrificing performance.

Please find the MENTOR LCR brochure here the MENTOR manual here.



Specifications:

Product Series MENTOR
Speaker Type Front
Rear
Surround
Frequency Range (+/-3 dB) [Hz] 45 - 34,000
Sensitivity (2,83 V/1 m) [dB] 86.0
Nominal Impedance [Ω] 6
Maximum SPL [dB] 106
Recommended Amplifier Power [W] 20 - 120
Crossover Frequency [Hz] 3,000 / 12,000
High Frequency Drivers 1 x 17 x 45 mm  Ribbon
1 x 28 mm  Soft Textile Dome
Low Frequency Driver 1 x 5"  Wood Fibre Cone
Enclosure Type Bass Reflex
Bass Reflex Tuning Frequency [Hz] 47.0
Connection input(s) Single Wire
Magnetic Shielding No
Recommended Placement Above/Below TV Screen
On-Wall
Dimensions With Base (HxWxD) [mm] 660 x 165 x 150
Weight [kg] 6.2
Accessories Included Manual
Rubber Bumpers
Finish Black Satin
Black Satin
White Satin
